Bulkhead Latch Motion

During observations of OV-105 from the Flight Deck (photos taken from window W9), it was noticed that the bulkhead latch linkage mechanisms are visible to the crew. There are no current plans to use the position of the mechanisms for any troubleshooting procedures; these are presented for information only.

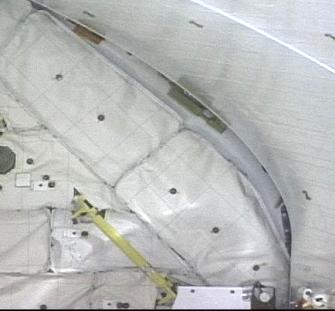

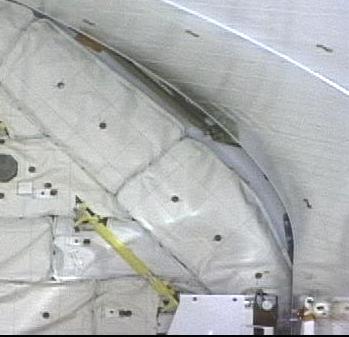

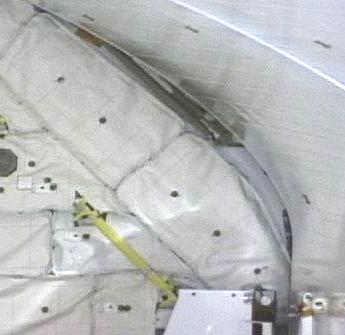

Port aft bulkhead latches in the CL position	Port aft bulkhead latches 10 sec after starting to move OP	Port aft bulkhead latches in the OP position
